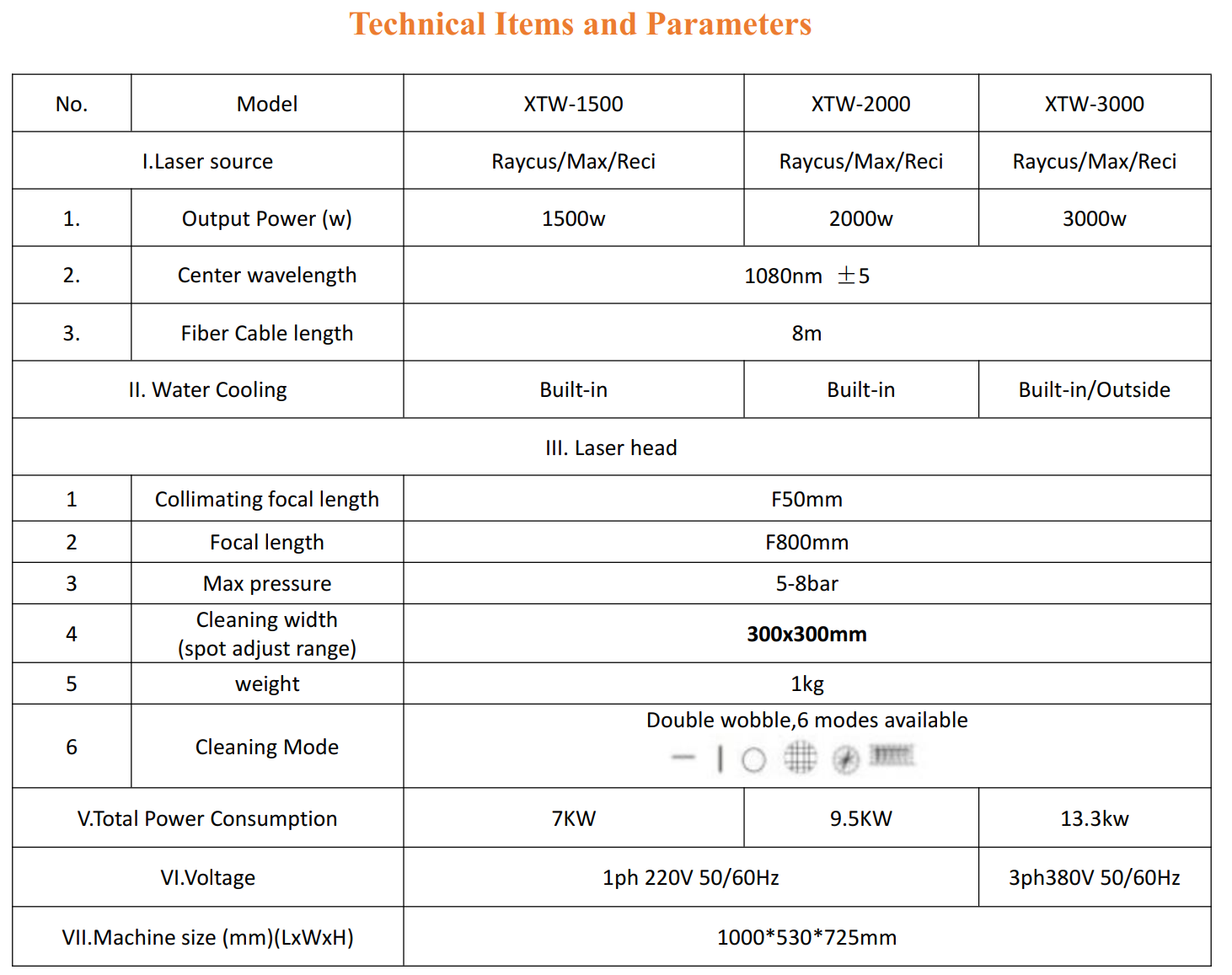

Quick Details
Handheld model
Raycus/Max/Reci laser source
Cable length: 8m

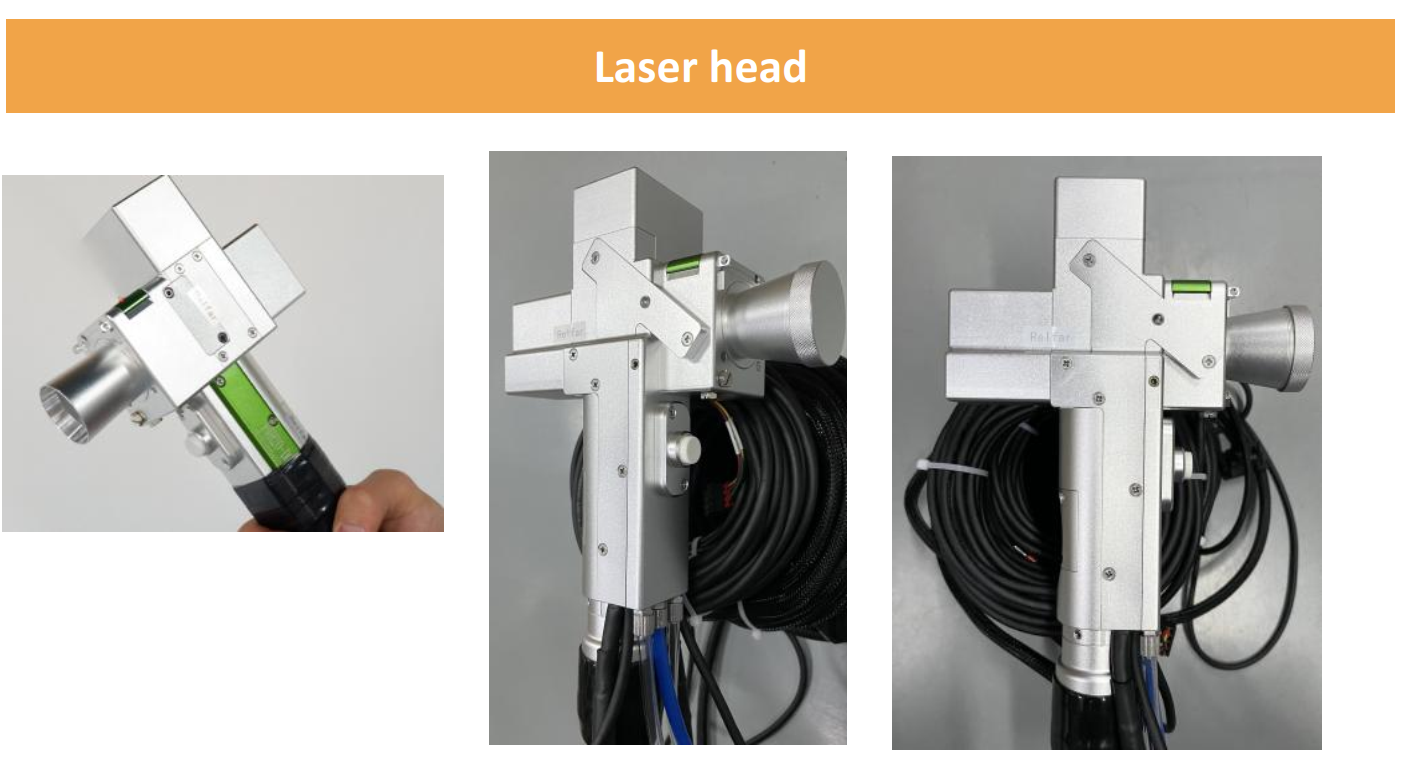

Laser head:1KG
Cleaning
Sales Package Includes the following consumable parts.
- 50 Protection Lens
- 5 Focus Lens
- 5 Collimation Lens
- 2 X Axis reflective lens
- 2 Y Axis reflective lens
Recommended Supporting Products:
- PAPR Laser Compatible Welding Helmet
- Laser Work Area Shields

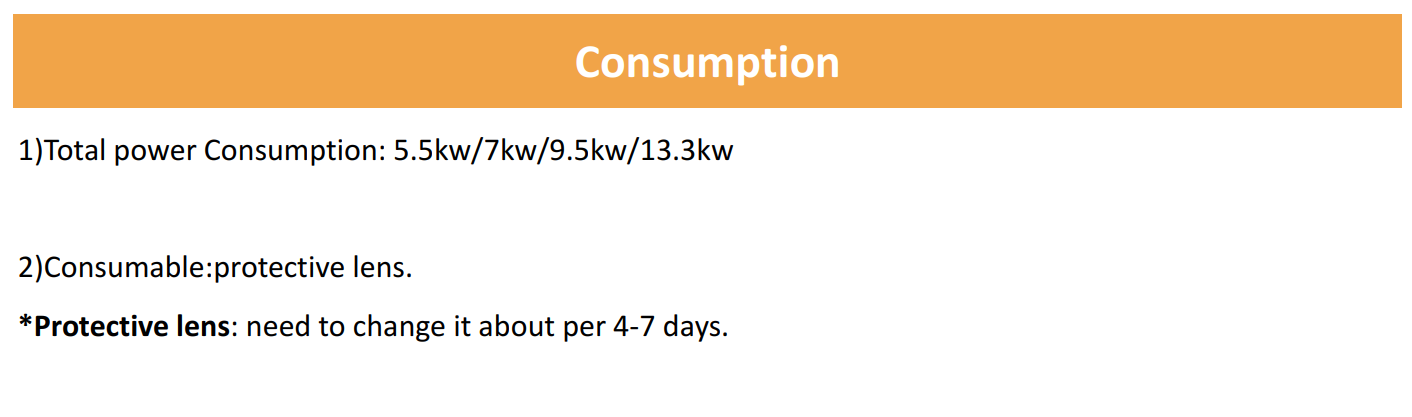

Protective lens are to be inspected daily for burn marks and contaimination. Dirty lenses will reduce the cleaners effectivness.
Focus, Collimation and Reflective lenses are also regarded as consumables. These lenses can also fail resulting in the machine signalling overheat errors. There are no servicable components in the reflective lenses and require the complete unit to be replaced.
